Sub 4
Sub 4 unlocks the full power of Sonos sound to immerse you deeper in every scene and song.
Pair Sub 4 with your Sonos soundbar or speaker for a difference you can hear and feel.1 Dual force-cancelling woofers deliver pulse-pounding bass and virtually eliminate distortion. Updated with a matte finish, the iconic design looks great in your home. Set it up in minutes — just plug in the power cable and open the Sonos app. Sub 4 connects to your system through WiFi, so you can put it where it looks and fits best in the room. Stand it upright or lay it on its side and hide it under your sofa. Pair two with Arc Ultra or Arc for bass so deep and sound so cinematic, you’ll forget you’re not in an actual theatre.
Features

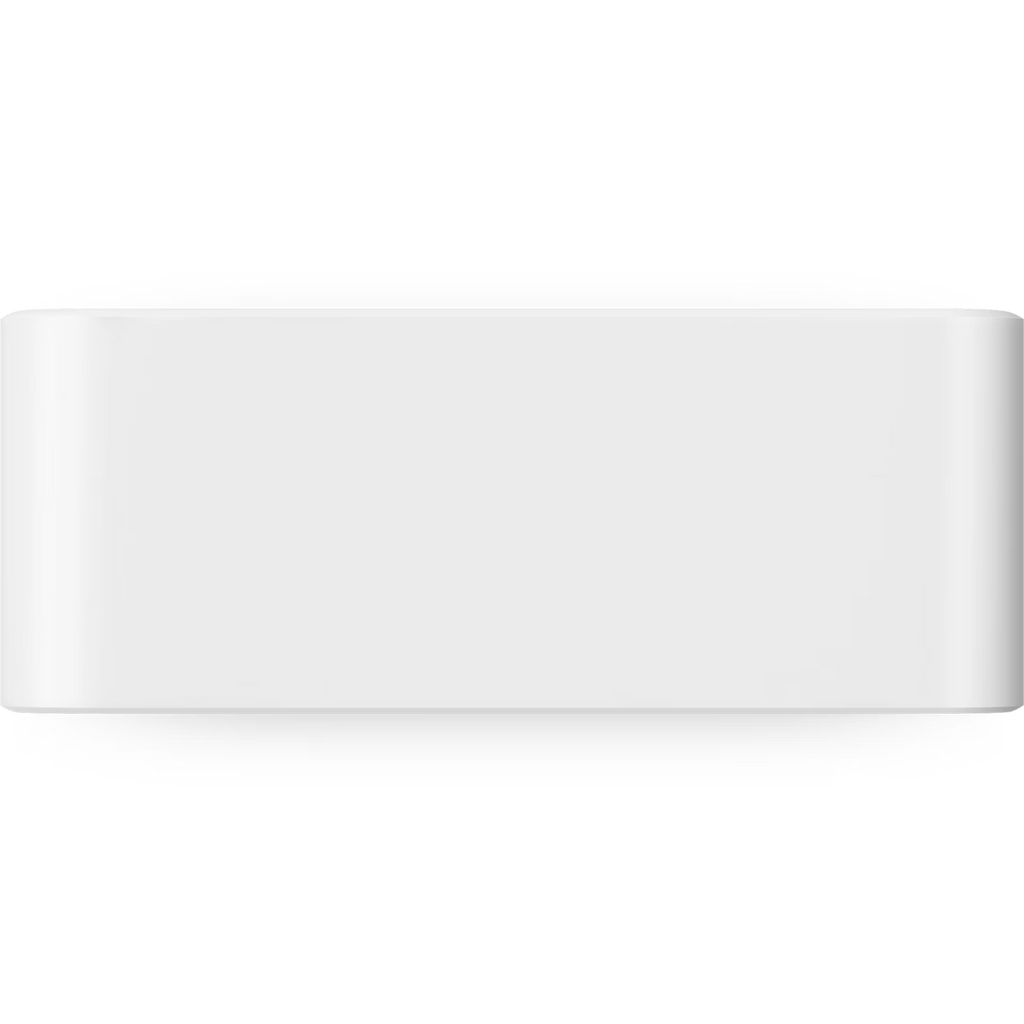

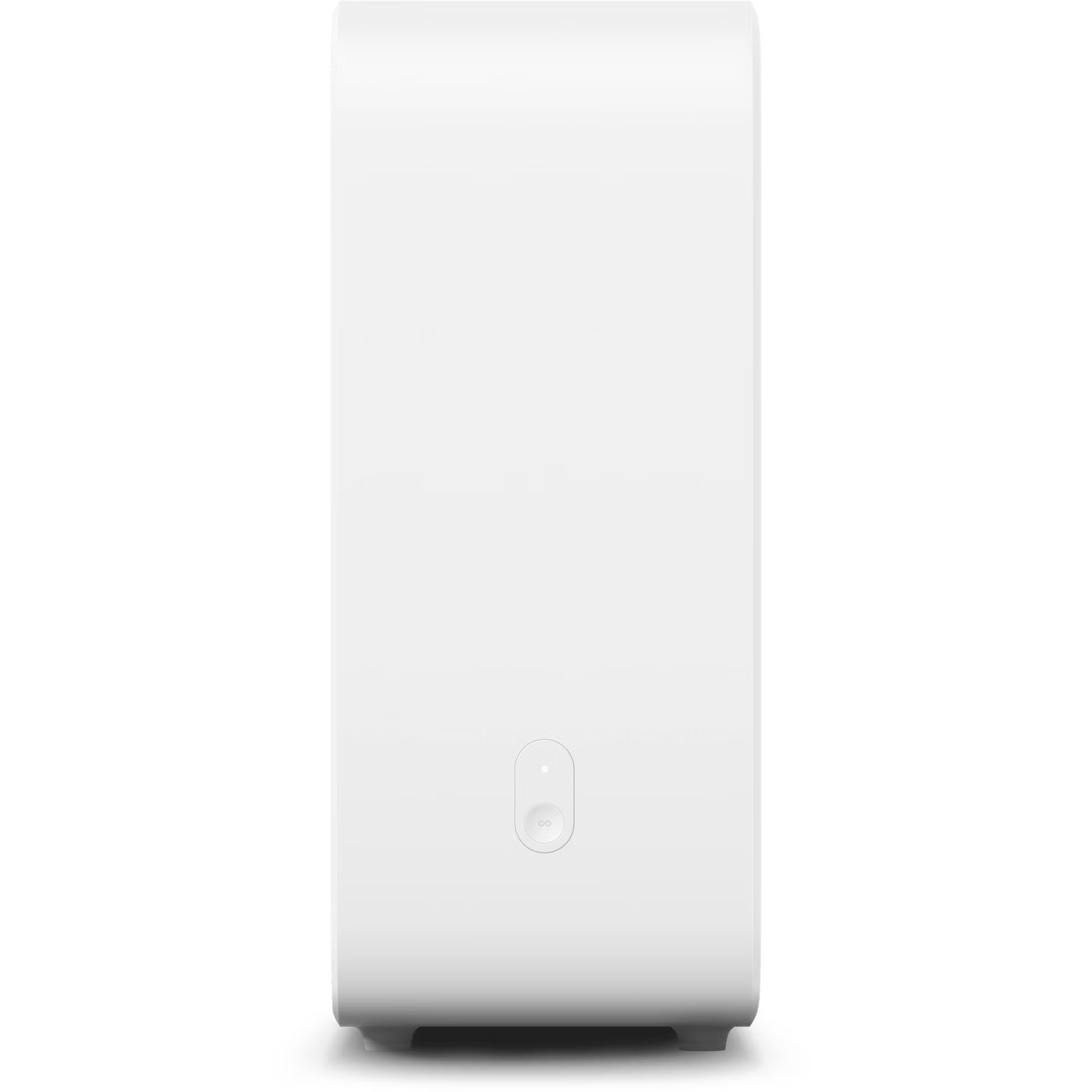

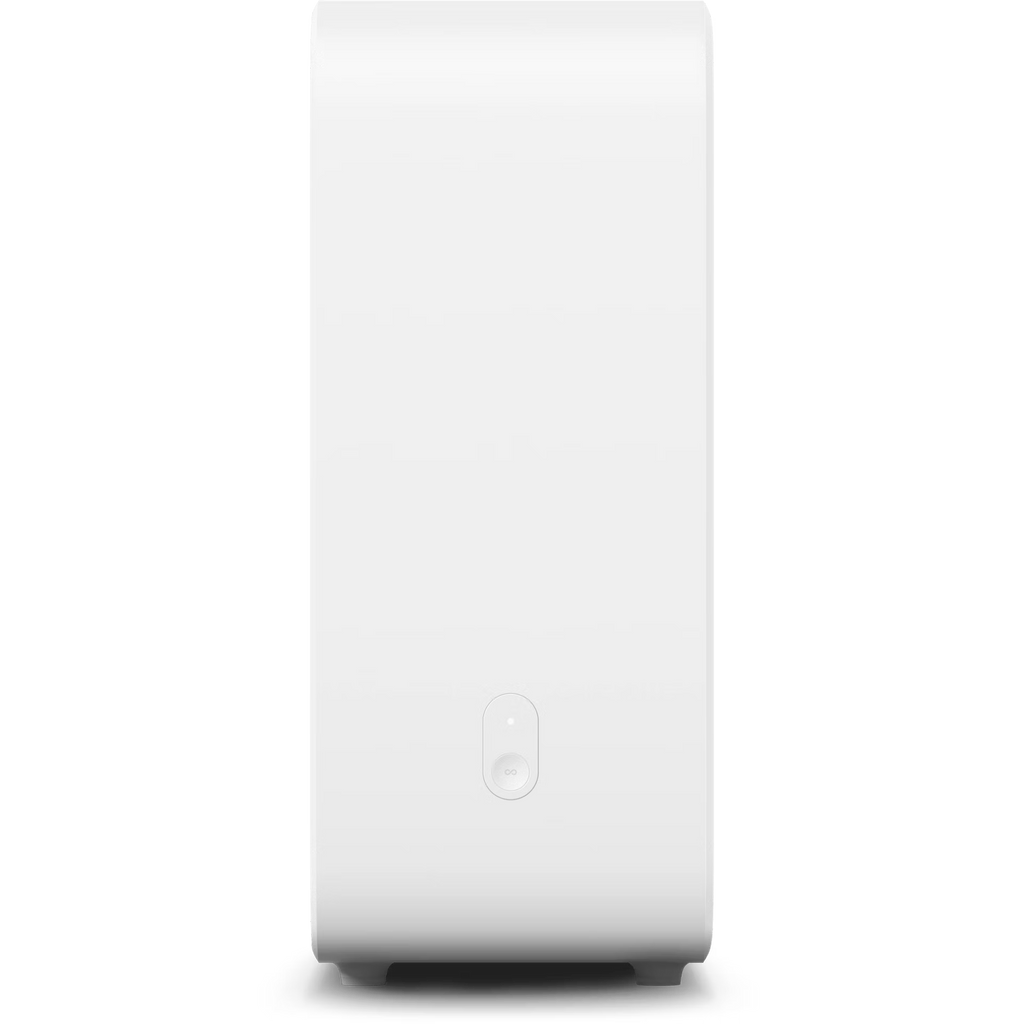

Dual orientation
WiFi
Bass you can feel

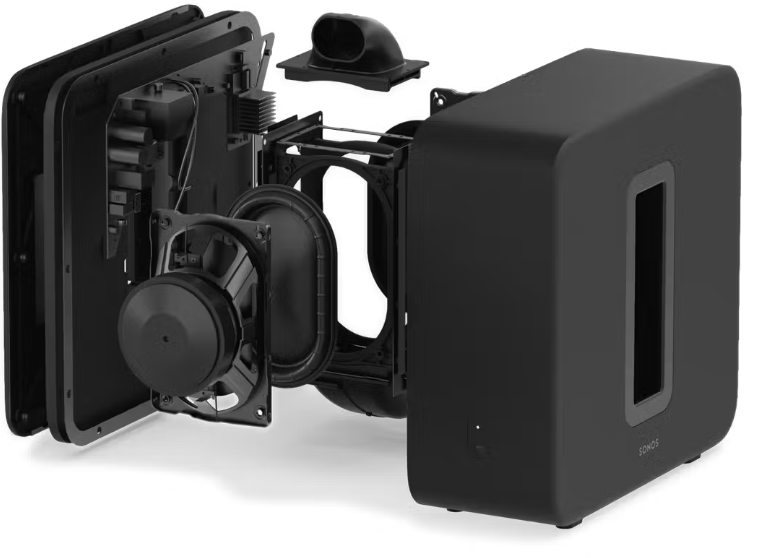

Pulse-pounding power
Bring music to life

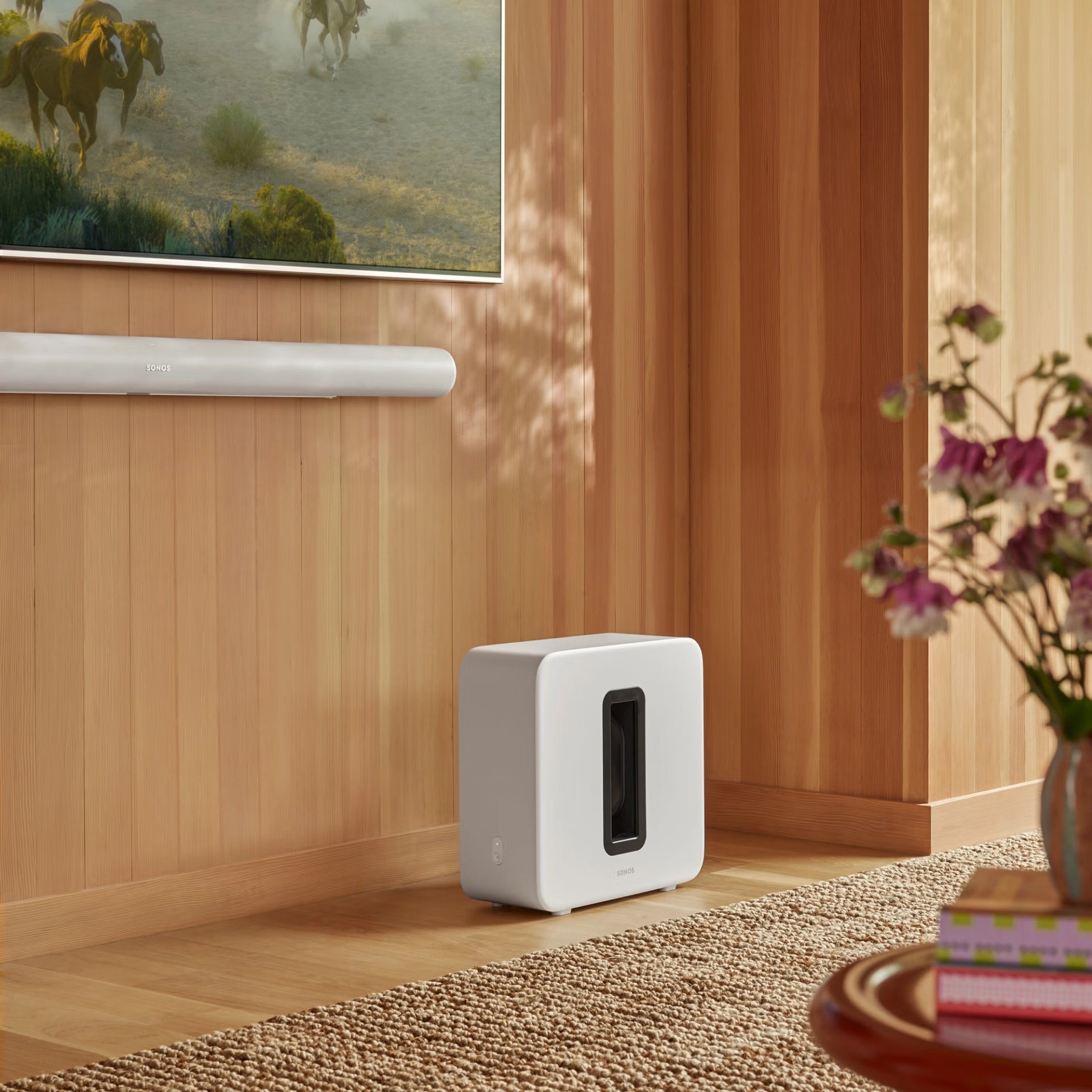

Better sound all around
Perfectly tuned for the room

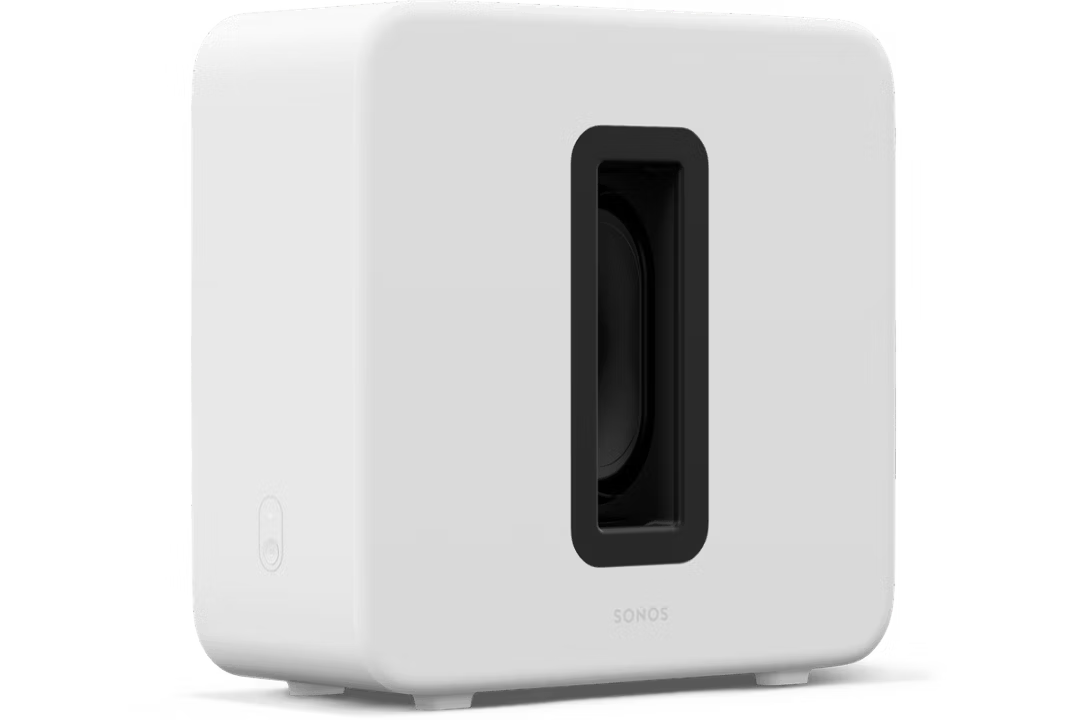

Iconic design
Control your way

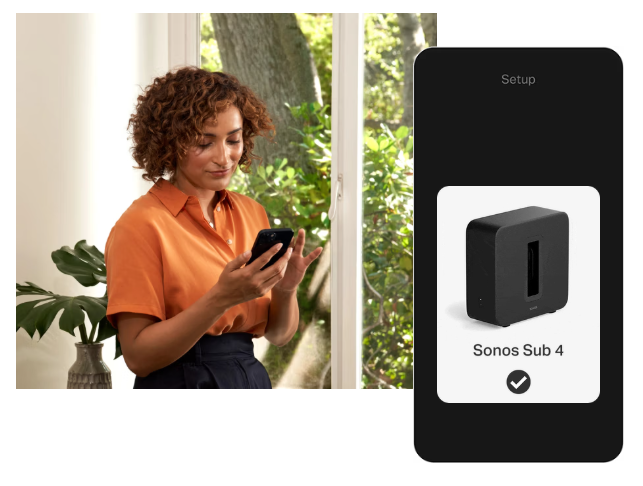

Plug and play

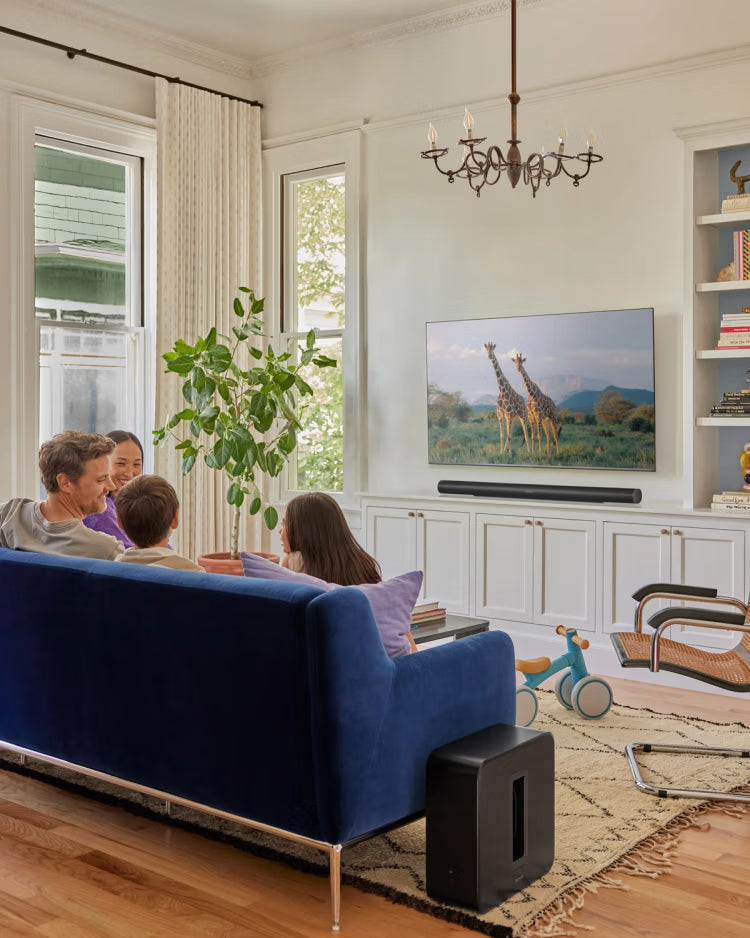

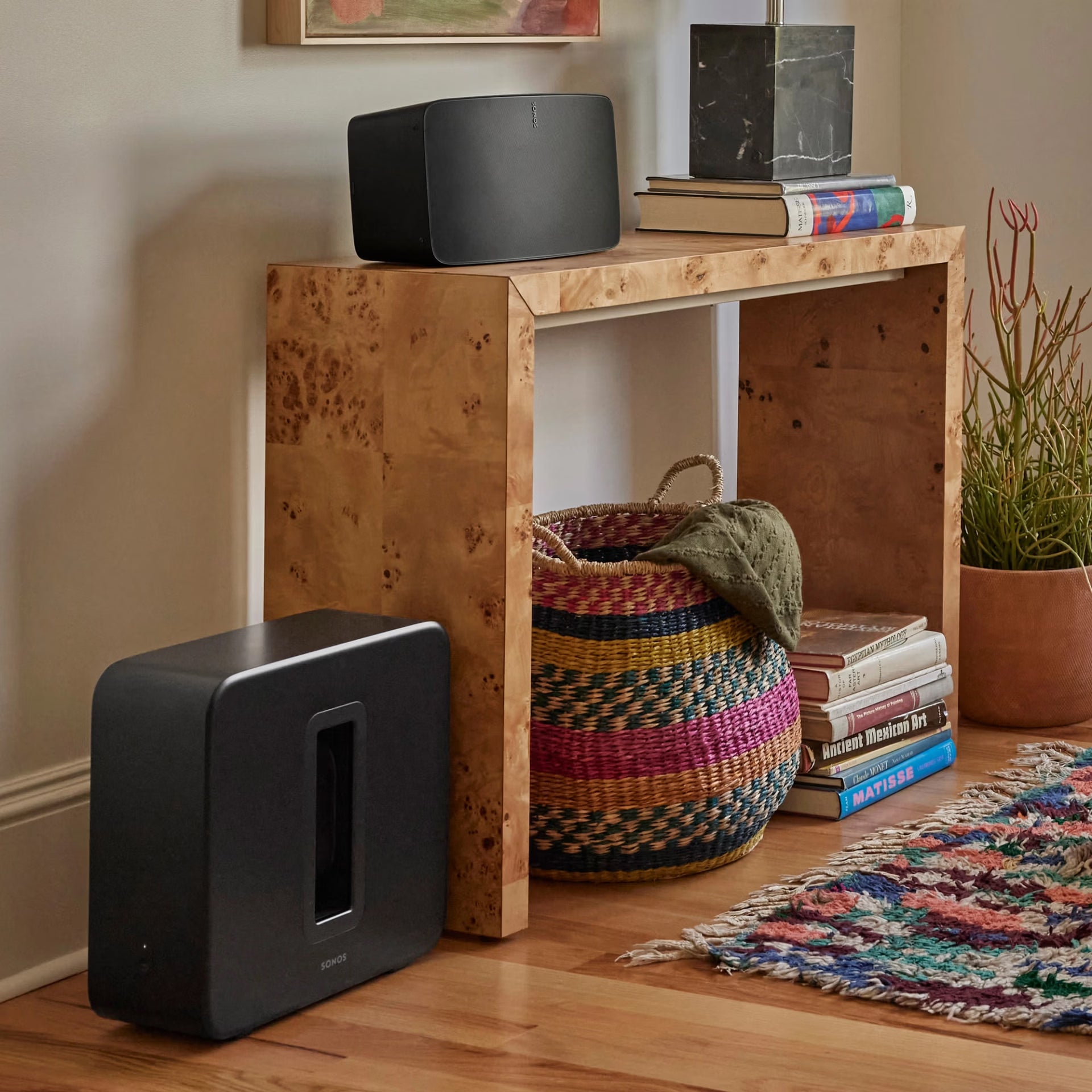

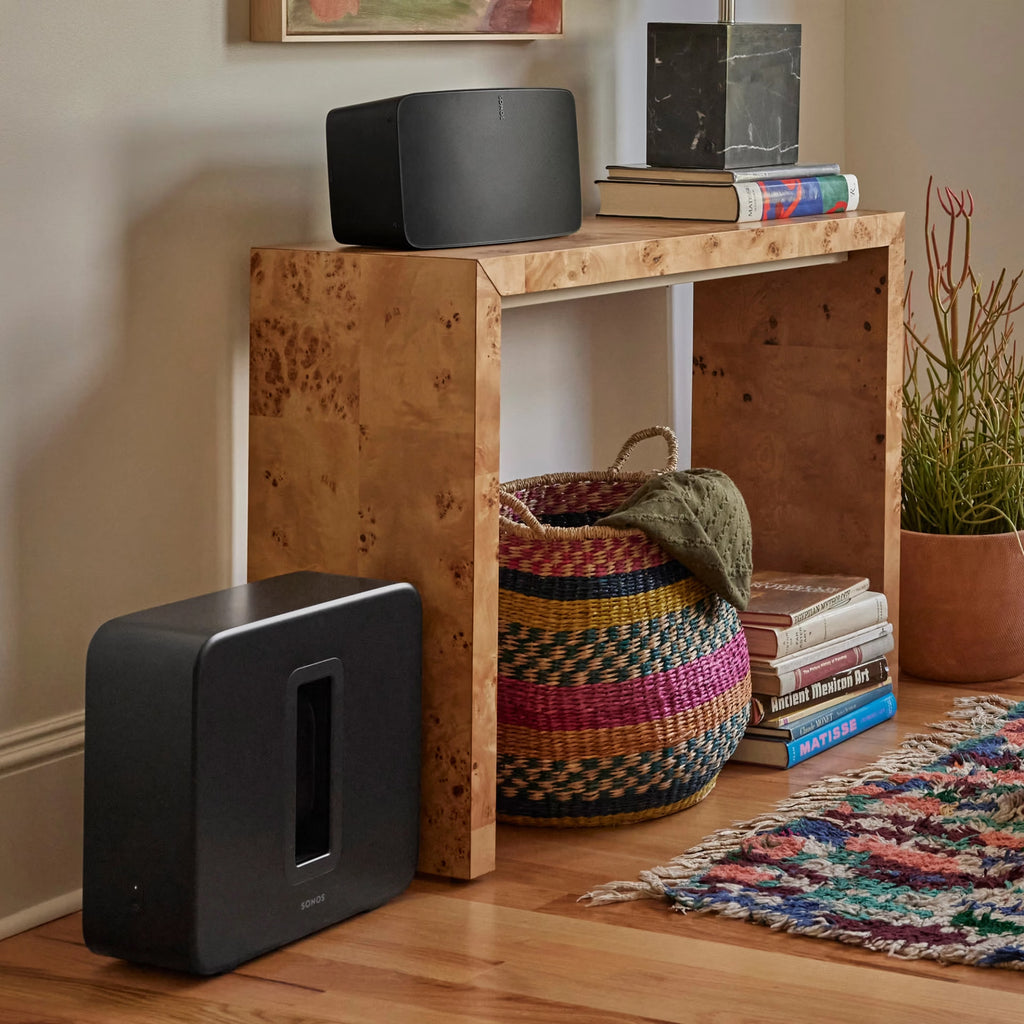

Place it where you want
Compatible products

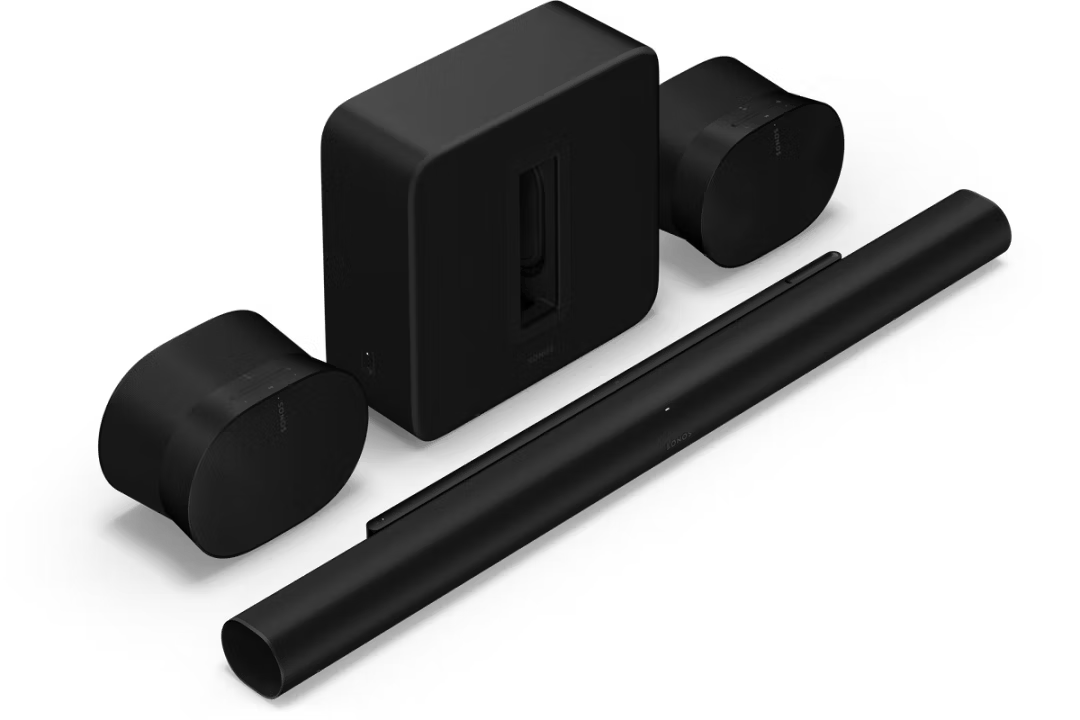

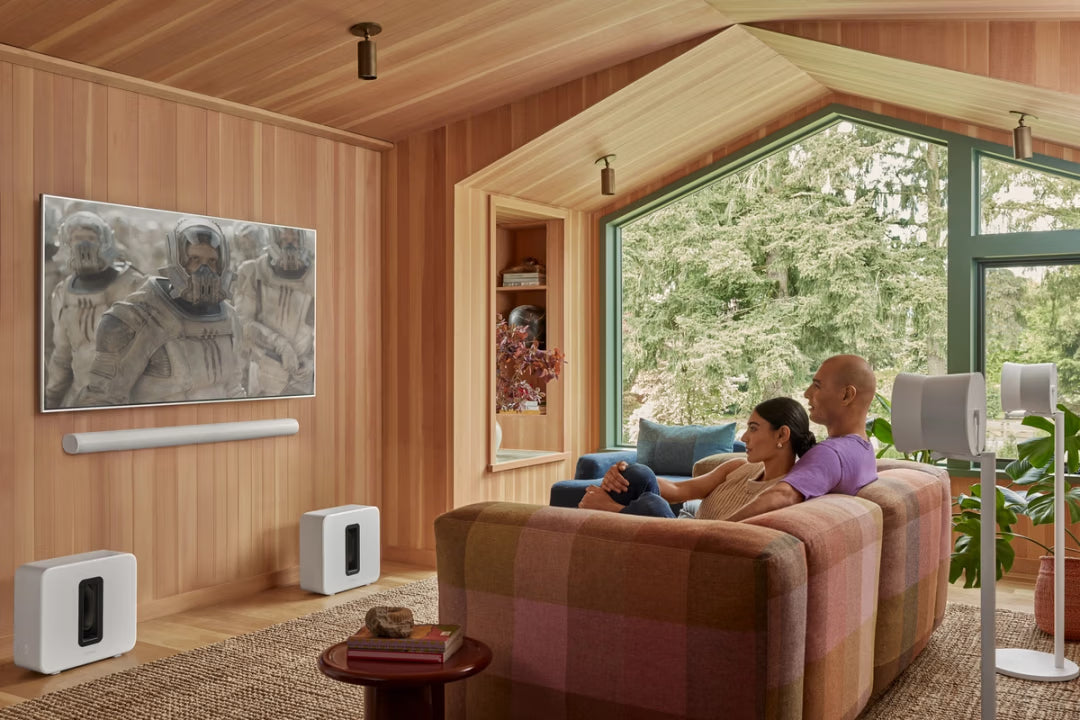

Double the drama
Tech Specs
- Audio
- Details + Dimensions
- Power + Connectivity
- Box Contents
- Requirements
Amplifiers
Dual Class-D digital amplifiers perfectly tuned to the subwoofer's unique acoustic architecture.

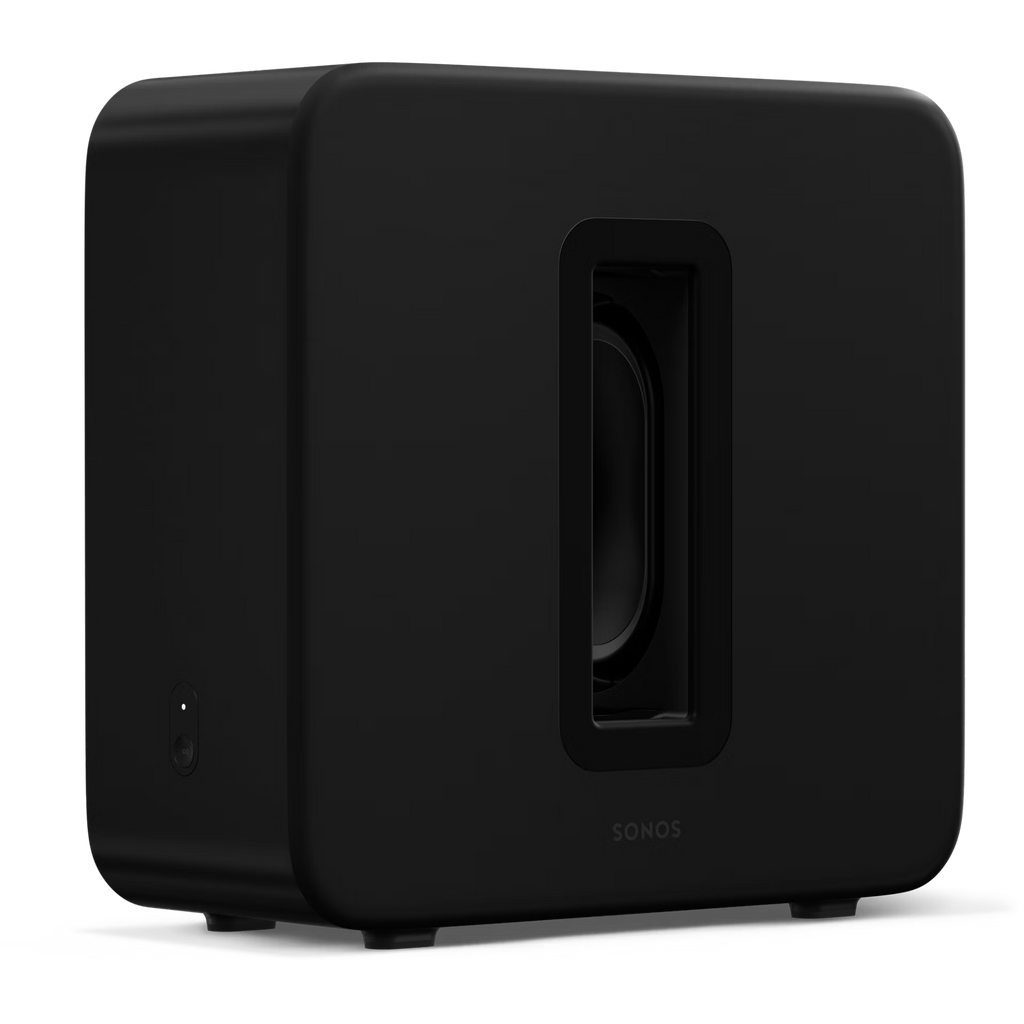

Woofers
Dual 5" x 8" elliptical woofers face inward for a force-cancelling effect that virtually eliminates distortion.
Architecture
Ported cabinet enhances bass response.
Frequency Response
As low as 25 Hz
EQ
Audio settings automatically equalize to balance Sub 4 and the paired Sonos speaker(s).
Trueplay
This software measures the acoustics of the room then fine-tunes your Sonos system.
Dimensions
Height: 389 mm
Width: 402 mm
Depth: 158 mm
Weight
11.79 kg

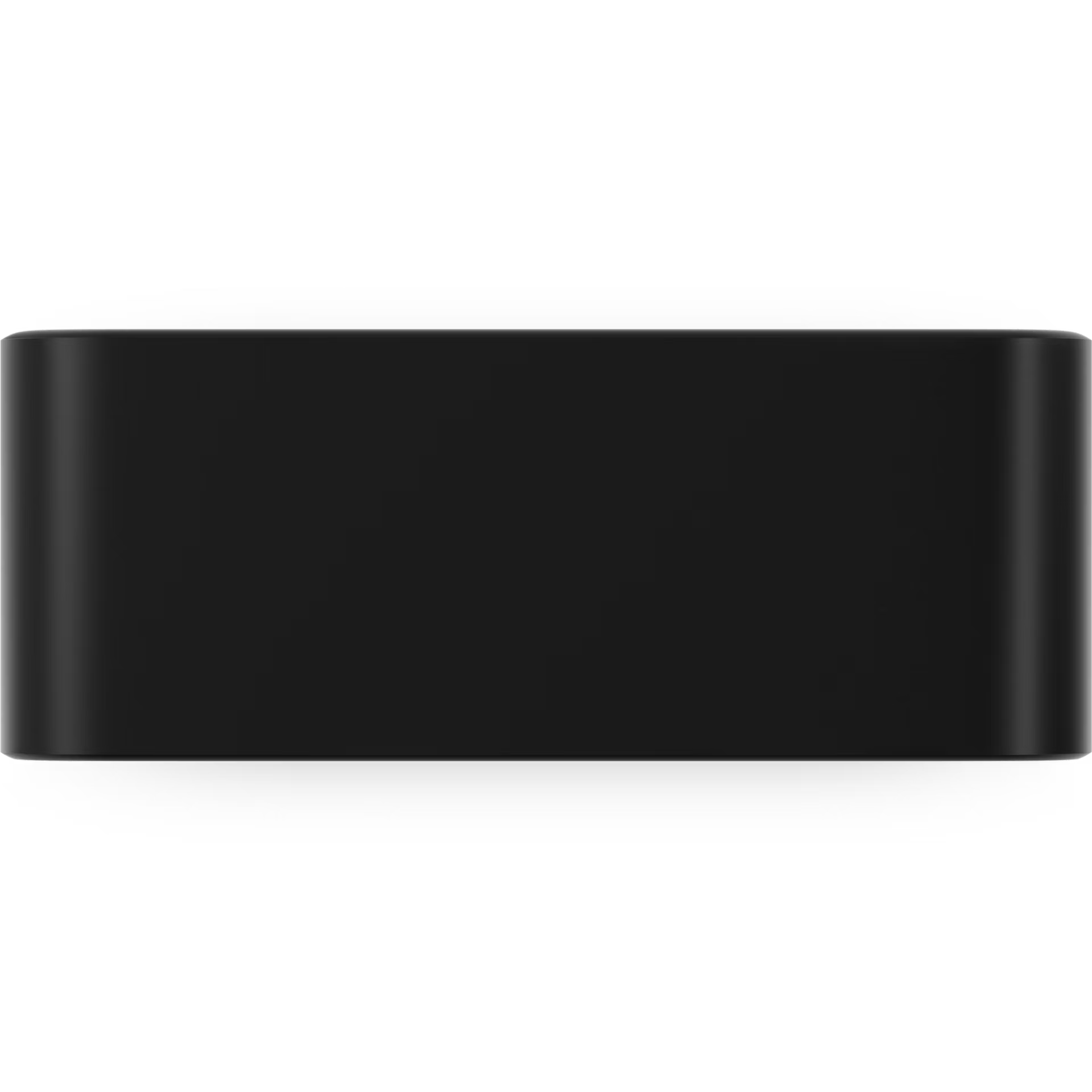

Colours

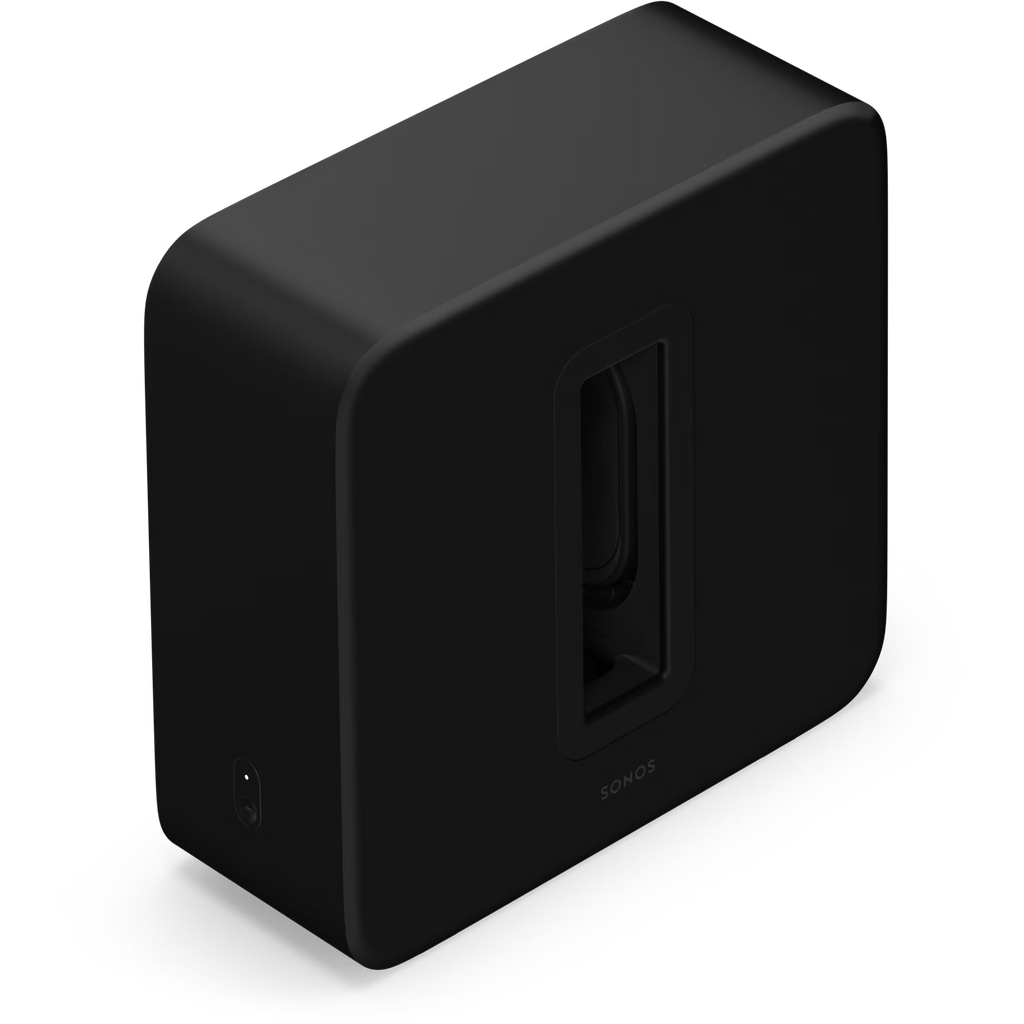

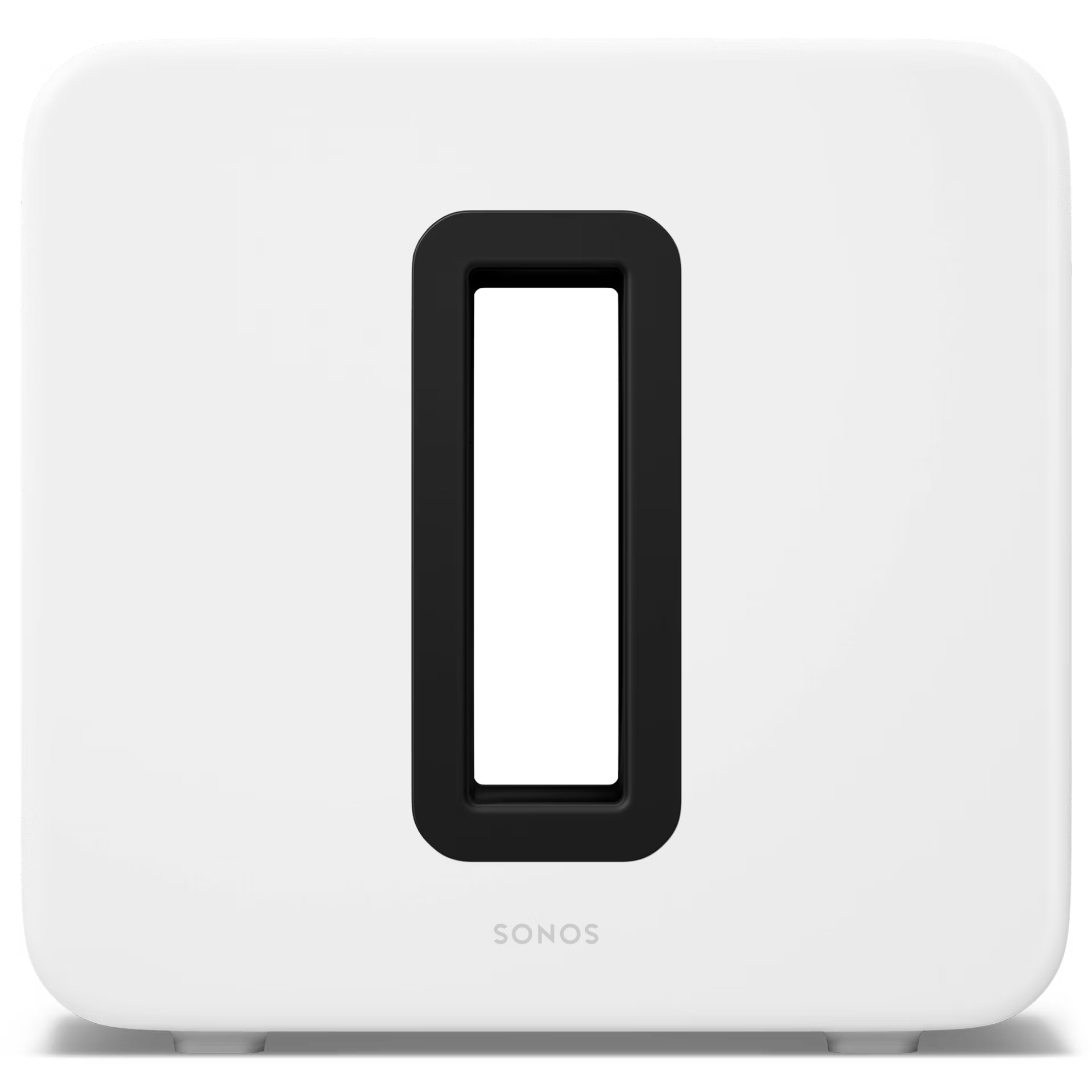

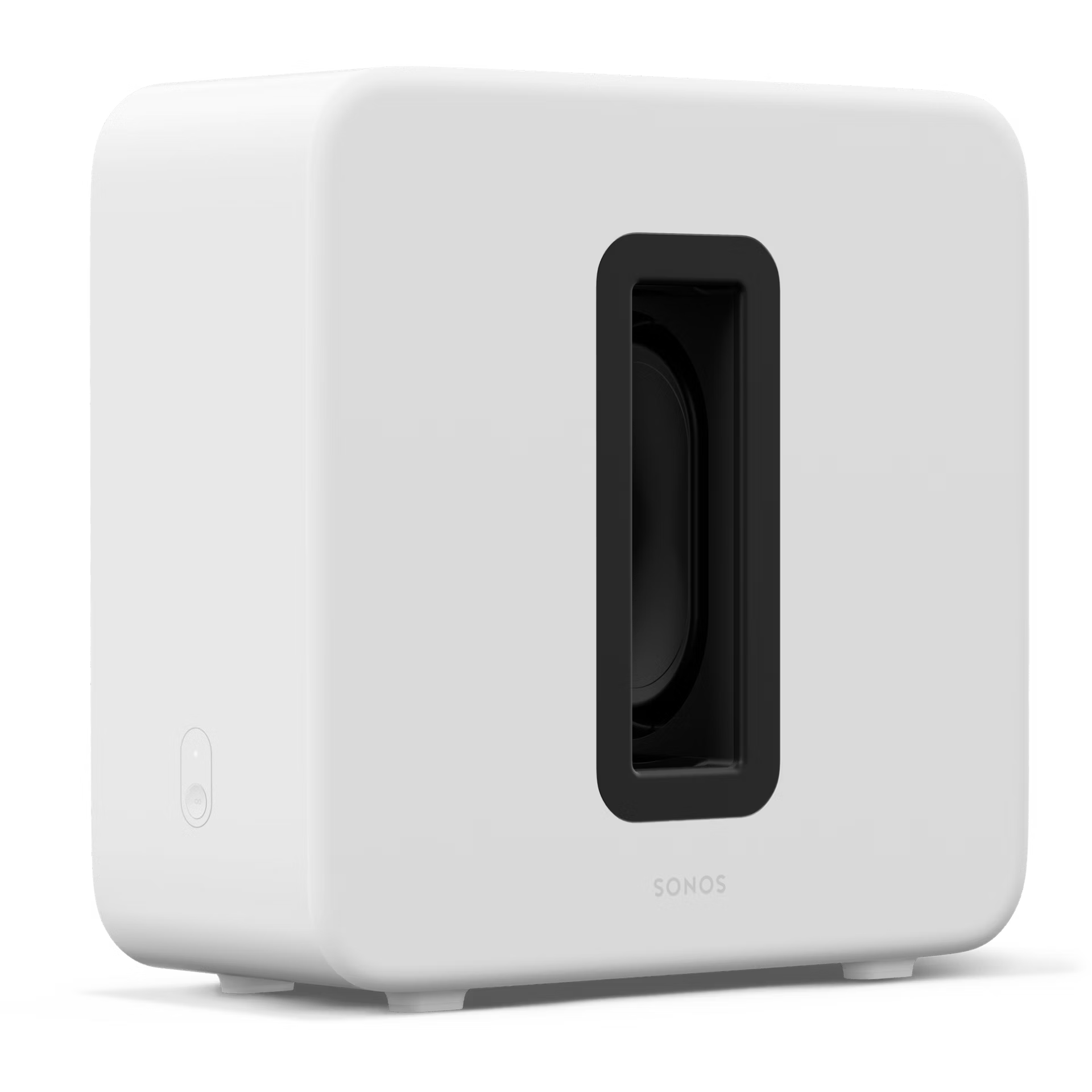

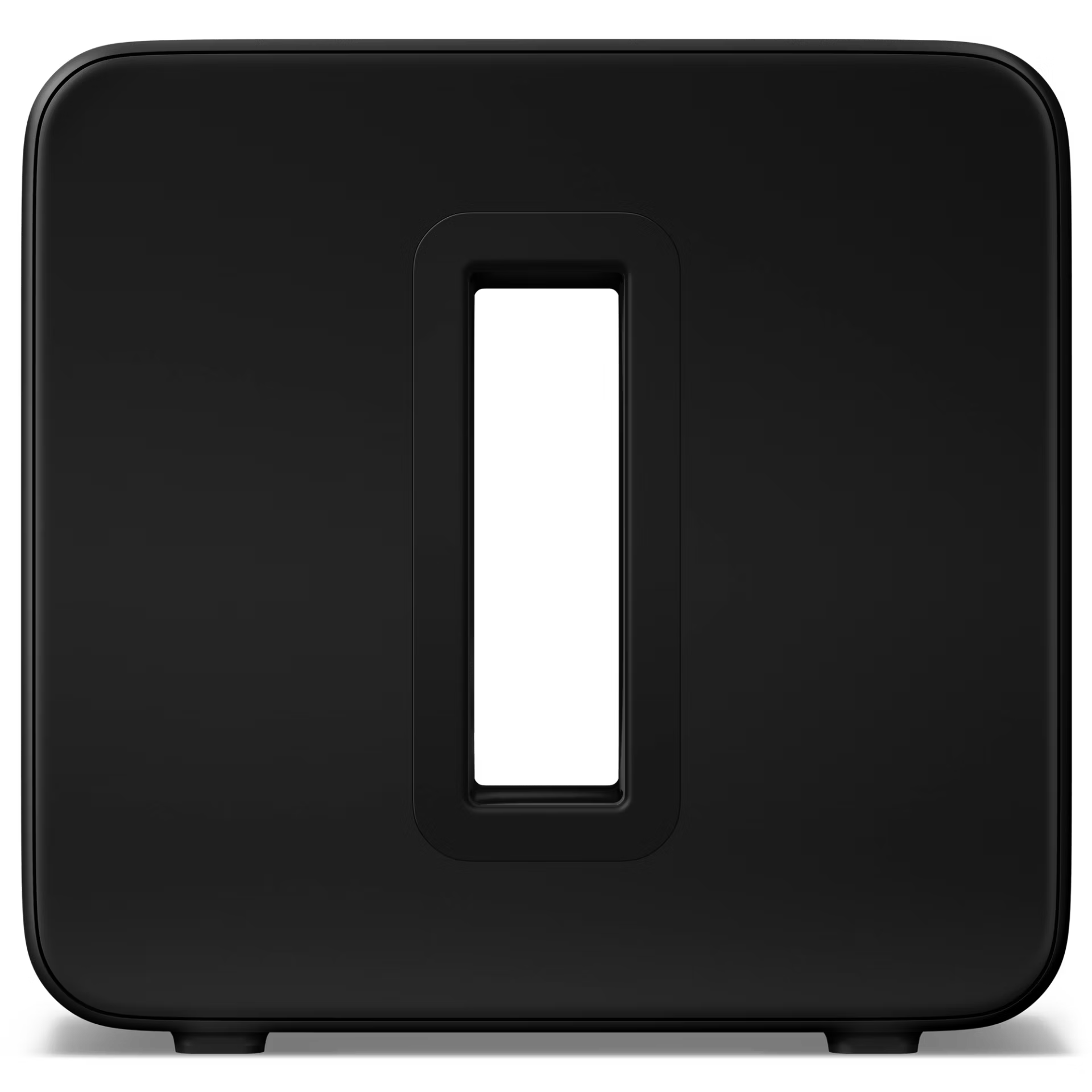

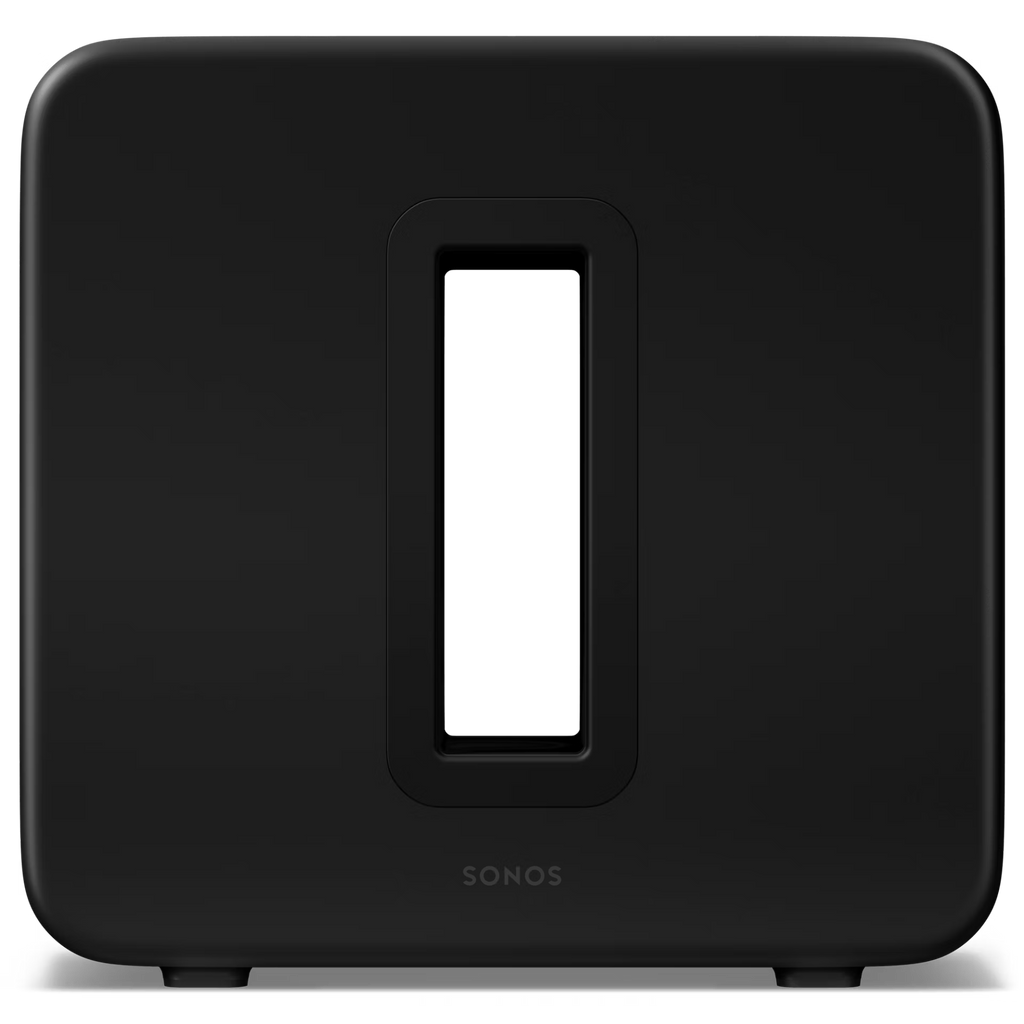

Black, White
Finish
Matte

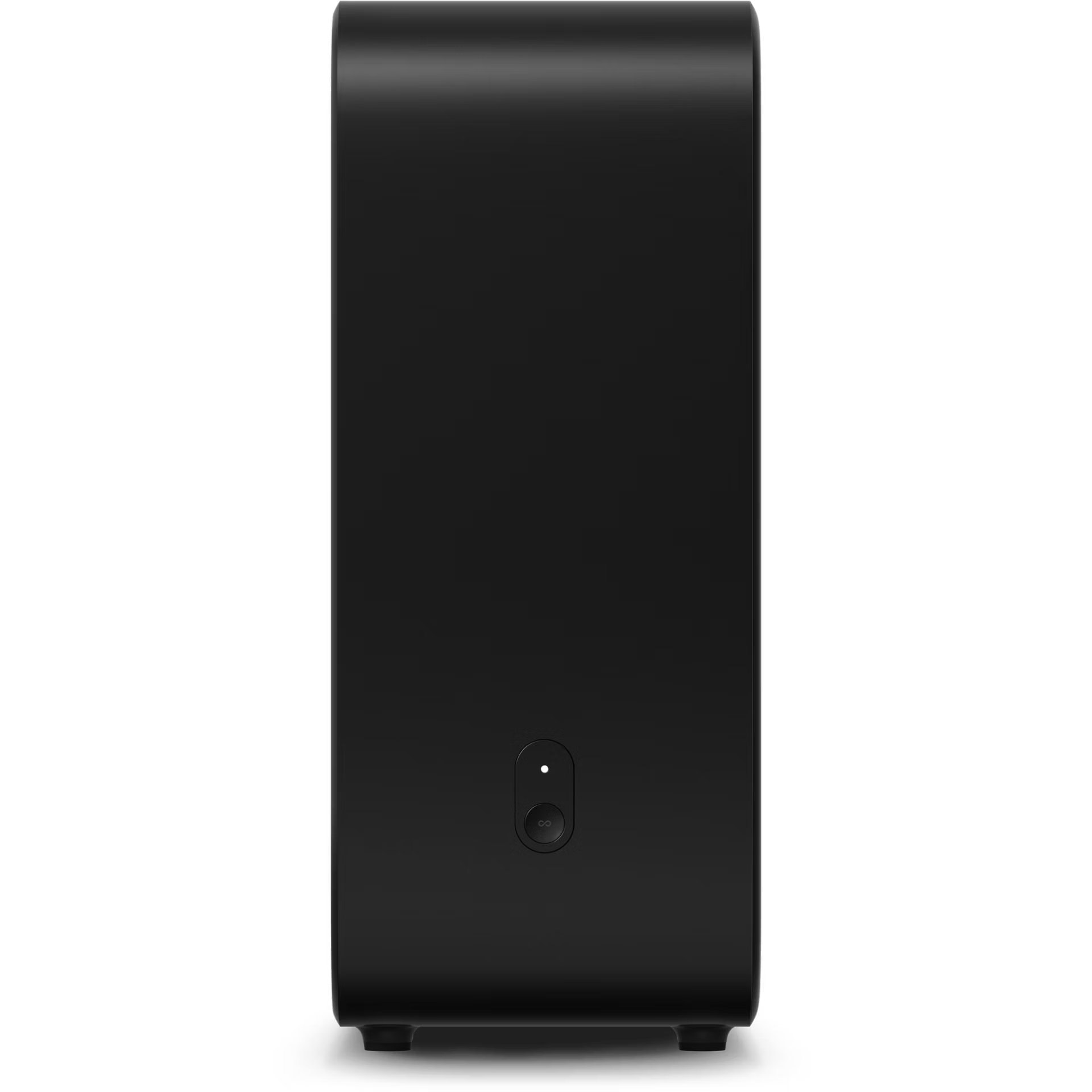

Join Button
Press once to add Sub 4 to your system during setup.
WiFi
Connects to any 802.11a/b/g/n/ac/ax 2.4/5 GHz broadcast-capable router.

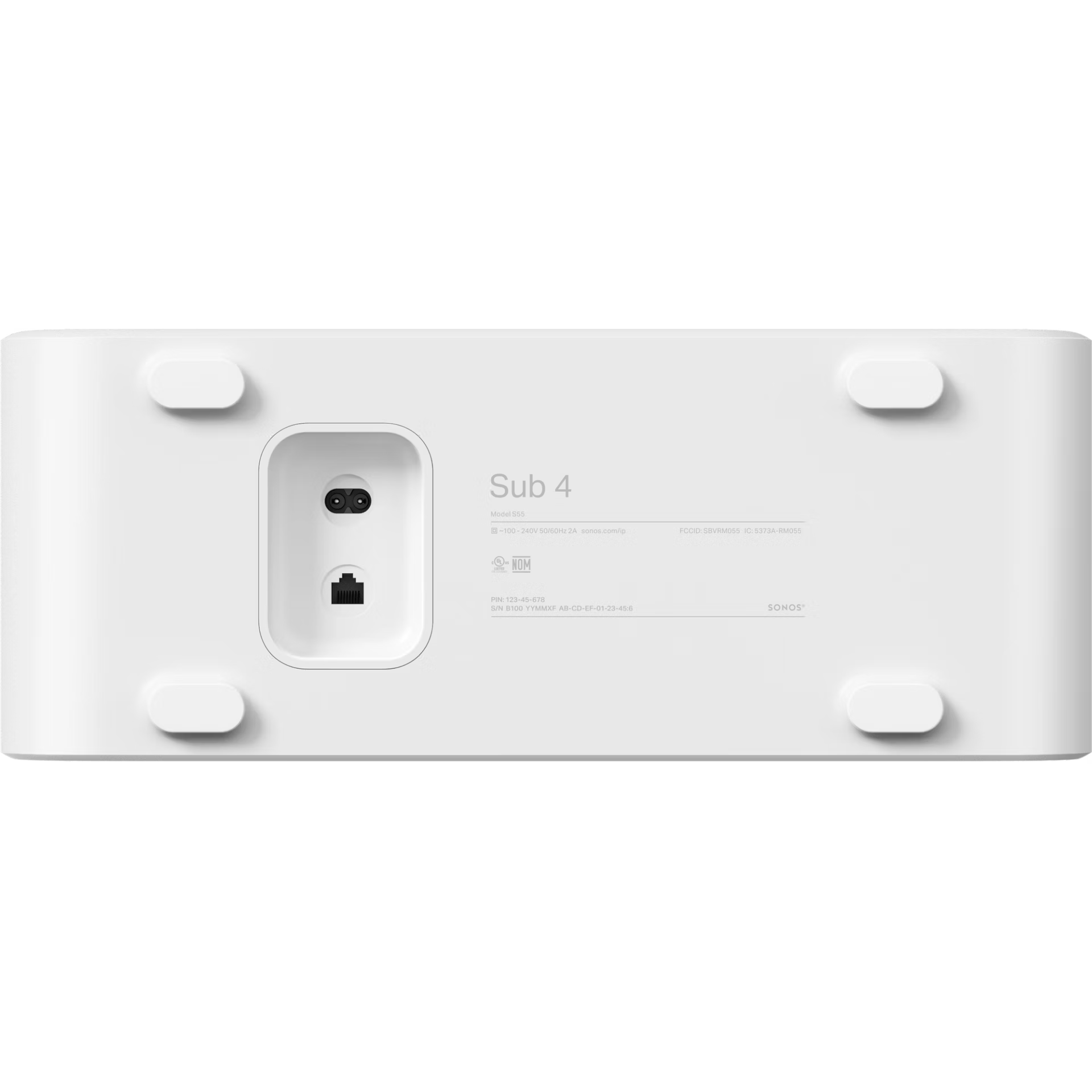

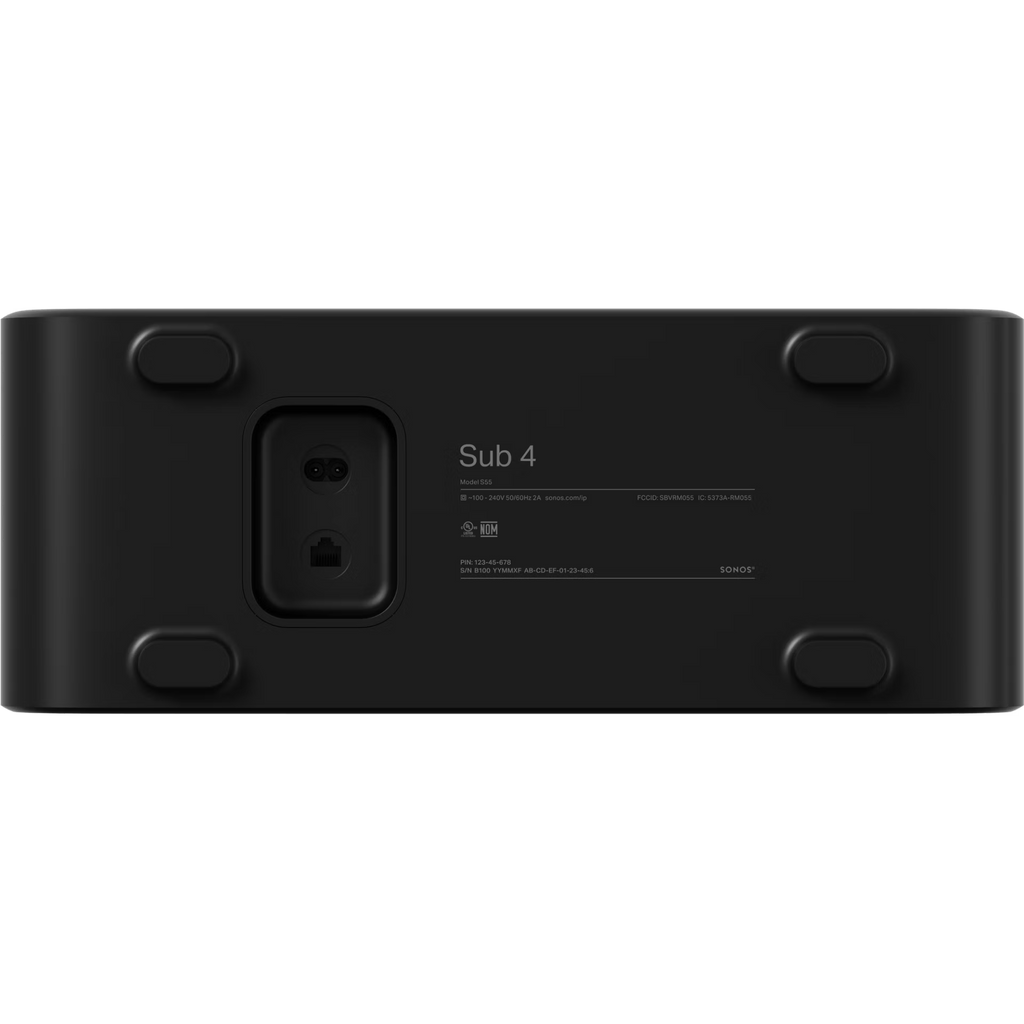

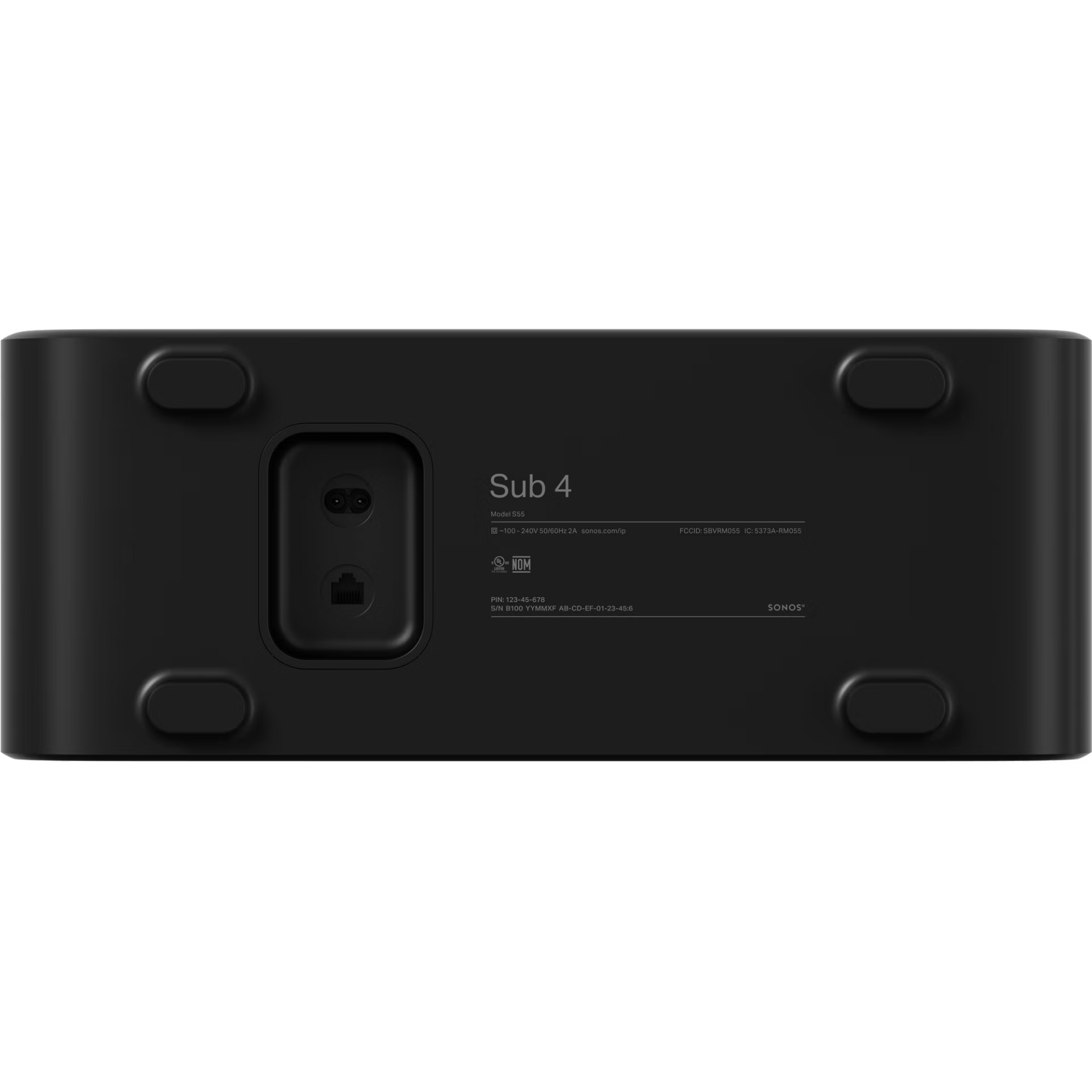

Ethernet
10/100 port for hardwiring to your router
Voltage
100-240V 50/60Hz internal power supply
CPU
Quad Core 4xA55 1.9GHz
Memory
512 MB DDR4
4GB eMMC
Operating Temperature
0°C to 40°C
Sonos Sub 4
Power Cable I
Length: 6 ft (2 m)
Documentation
Quickstart Guide and legal/warranty information
WiFi
Internet connection
Power Source
Nearby electrical outlet
Sonos app
The latest generation of the Sonos app running on a compatible device
Sonos product
A compatible amplified non-portable product, such as Arc Ultra or Era 300
How is Sub 4 different from the previous generations?
Sub 4 features an updated matte finish, increased processing power and memory, and new WiFi radios.
Which products can Sub 4 be paired with?
Sub 4 can only be paired with an amplified, non-portable Sonos product. For more information on compatibility, refer to Sonos.
Can I connect Sub 4 to a third-party soundbar, wireless speaker or Bluetooth speaker?
Sub 4 will only connect to another Sonos product.
Do I have to plug in Sub 4?
Yes. Sub 4 connects to a Sonos soundbar or speaker over WiFi but still requires AC power.
Do I need to set up Sub 4 at the same time as my soundbar or speaker?
No. The Sonos system is designed for modularity. You can add Sub 4 at any time.
Can I hardwire Sub 4 to my soundbar or speaker?
Sub 4 will only connect to your Sonos system over WiFi.
Can I use Sub 4 with my passive/wired speakers?
If you power your speakers with Sonos Amp, you can use Sub 4 with passive/wired speakers.
Does laying Sub 4 on its side affect the sound quality?
The direction or orientation of Sub 4 does not significantly affect the sound quality. Placing the product in a very confined space, however, could affect the dispersion of sound and your listening experience.
If I have Sonos speakers in various rooms, will placing a subwoofer in the centre of my home improve the bass of my entire system?
A subwoofer will only enhance bass in a single room that's part of your Sonos system.
Can I have two subwoofers in the same room?
You can have up to two compatible Sonos subwoofers as part of your Sonos home theatre setup.
Can I use the Sonos S1 Controller app with Sub 4?
Sub 4 requires the latest generation of the Sonos app.
