Amp Multi
Built for professional installation, Amp Multi provides unmatched multi-zone flexibility with GaN and PFFB technology to completely redefine what an 8-channel amplifier can do.
Amp Multi delivers 8 x 125W of power across up to four zones, leveraging advanced GaN technology and post-filter feedback (PFFB) for greater efficiency, clarity, and control. With ProTune, installers can optimise the sound for any low-impedance passive speakers, tailoring performance to placement and room acoustics. ProTune offers a full suite of manual controls, including a 10-band parametric EQ plus adjustable gain and delay offsets, enabling truly bespoke audio experiences. Its innovative chassis design enhances thermal performance, while recessed connectors, status LEDs, and a streamlined 2U rack mount simplify setup and ensure reliable, fanless cooling.
Features
8 x 125W
4 zones
ProTune
2U rack mount
GaN
PFFB
Ethernet
Wifi 6
Apple AirPlay 2
Fanless
World-class audio, amplified
Multi-zone flexibility
Innovation from the inside and out
Setup made simple
ProTune
Manually tune each output
With ProTune, you can optimise the sound for the placement and room acoustics of any low-impedance passive speakers. This feature offers a comprehensive set of manual controls, including a 10-band parametric EQ and adjustable gain and delay offsets.
Seamless cues
Intuitive configuration
An audible chirp identifies each unit in the Sonos app—no PIN required. Front and rear LEDs indicate setup mode for a more seamless experience.
Real-time LEDs
Intelligent indicators
Speaker outputs automatically detect when a speaker is connected, while status LEDs provide real-time feedback during setup. Ambient light sensing adjusts brightness to the environment, and all indicators are configurable in the app.
Optimise Sonos Speakers
Power more speakers
Select the feature Optimise Sonos Speakers in the Sonos app to unlock the ability to power up to three Sonos Architectural speakers per output (24 total). The custom DSP optimises the EQ, while limiter control enables even and consistent volume dynamics throughout the frequency range.
Ethernet or WiFi
Flexible connectivity

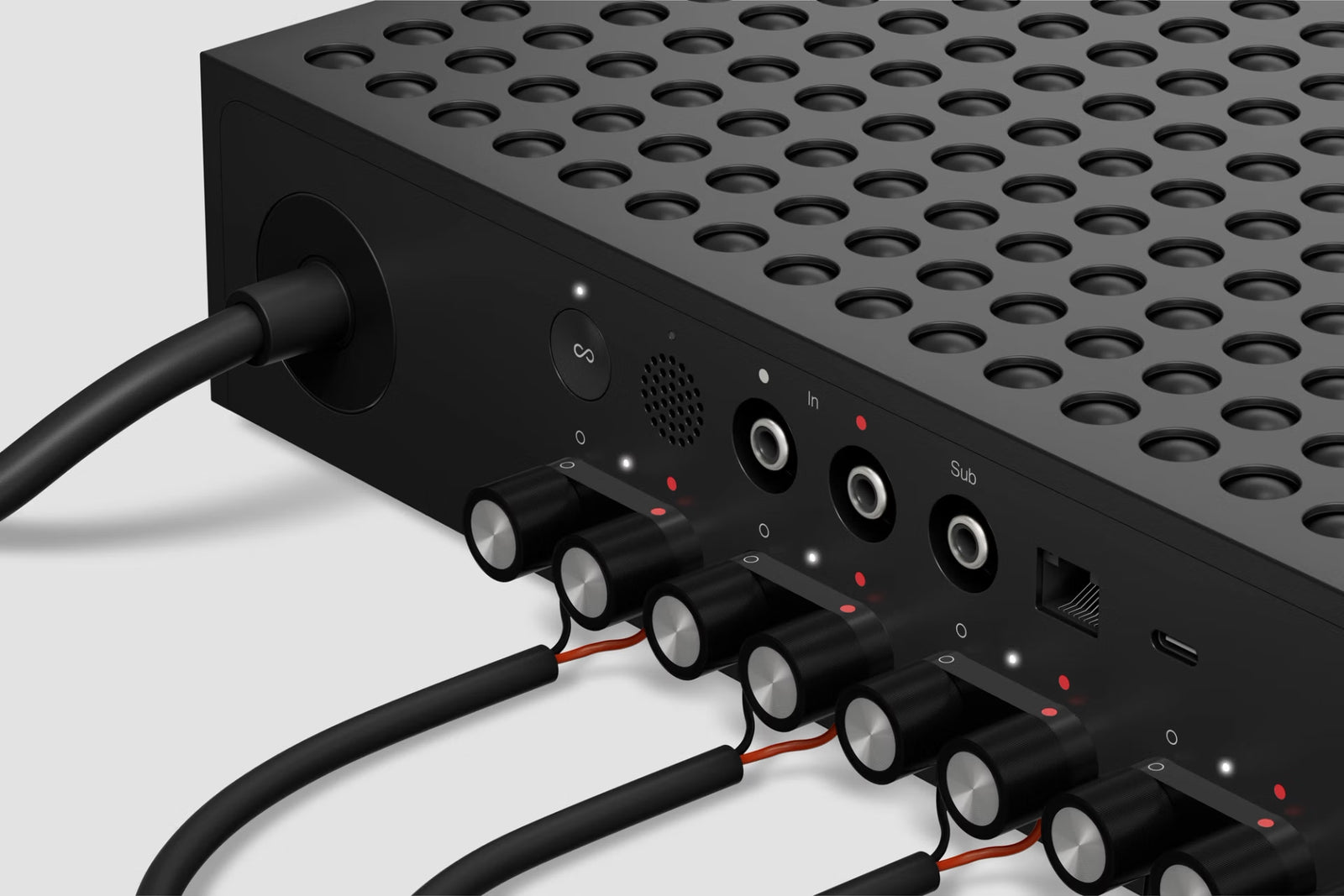

Connect via wired Ethernet or WiFi 6 and stream up to four audio sources simultaneously using the Sonos app, Apple AirPlay 2, or Spotify Connect. Analogue and USB inputs provide additional flexibility, and the subwoofer output is freely assignable to any zone.
Sonos app
Easy app control
Control everything from the Sonos app—zones, sources, output assignments, and status monitoring—all in one place.
Ready to rack
Built to breathe
The Rack Mount creates space above and below each unit to support airflow in a clean, 2U configuration.
Streamlined installation
With its flat back design, Amp Multi slides easily onto the Rack Mount. Installation is satisfyingly simple.
Space-saving design
Amp Multi eliminates the need for vent panels between rack units and reduces the number of screws required for installation—saving time, rack space, and hardware.
Looks right at home
Works with your devices
Recycled plastics
Amp Multi features 47% recycled plastic—helping reduce waste and give materials a second life.
Energy efficient
GaN technology helps Amp Multi consume less than 5.5W at idle to reduce heat and improve reliability, while software enhancements further reduce energy use during playback and standby.
Eco packaging
The exterior and interior packaging is 100% recyclable and crafted using paper certified by the Forest Stewardship Council®.
Choose the right component for your system
Amp Multi
Rs. 350,000.00
- 14 drivers, including Sound Motion™
- For TVs 50"+
- Advanced Speech Enhancement
- Dolby Atmos
- Trueplay™ for iOS and Android
- Bluetooth 5.3 and WiFi
- HDMI® eARC
- Works with TV remote
- Voice enabled
- Upward-firing drivers
Amp
Rs. 74,999.00
- 5 drivers
- For TVs up to 65"
- Speech Enhancement
- Dolby Atmos
- Trueplay™ for iOS
- WiFi
- HDMI® eARC and Optical Adapter
- Works with TV remote
- Voice enabled
Port
Rs. 49,999.00
- 4 drivers
- For TVs up to 55"
- Speech Enhancement
- Dolby Digital
- Trueplay™ for iOS
- WiFi
- Optical
- Works with TV remote
- Voice enabled
Tech Specs
- Audio
- Details + Dimensions
- Power + Connectivity
- Box Contents
- Requirements
- Downloads
Speaker Outputs
8 amplified outputs each independently configurable for stereo or mono
Power
125 W per channel @ 8Ω (all channels driven)
Minimum Impedance
2.67Ω with Sonos Architectural speakers
Damping Factor
>400 (ref. 8 ohms, 20 Hz to 1 kHz)
Amplifier Technology
Class D with GaN and PFFB
Total Harmonic Distortion
0.005% at 2.83Vrms-15Vrms
Frequency Response
±0.5 dB, 15 Hz - 20 kHz
Channel Separation (Crosstalk)
-100dB at 1 kHz 2.83Vrms
-80dB at 10 kHz 2.83Vrms
Signal-to-Noise Ratio
114dB ref 125W into 8-Ohm
ProTune
10-band parametric EQ with ±15dB gain, Q, and frequency control. Option for high-shelf, low-shelf, and bell filter types. Gain trim: -15 - +5 dB Delay: 0 - 50ms Highpass: 15-100Hz
Optimise Sonos Speakers
When selected in the Sonos app, Optimise Sonos Speakers allows Amp Multi to recognise Sonos Architectural speakers, then applies custom tuning and DSP to provide more robust sound with a more even frequency response, optimising system performance and ensuring stable operation.
Dimensions (Single Unit)
Height: 2.52 in (64.5 mm)
Width: 17.2 in (436.8 mm)
Depth: 10.44 in (265.2 mm)
Dimensions (with 2U Rack Mount)
Height: 3.47 in (82.3 mm)
Width: 19.01 in (483 mm)
Depth: 10.44 in (265.2 mm)
Weight
5.06 kg
Colours
Black
Finish
Matte
LEDs
Front: Device status
Rear: Device status, output status (x8), RJ45
status light
Power Consumption
5.4 W (idle)
180 W (all channels driven at 1/8 output power, 8 Ohms)
Power
Auto-switching 100-240V 50/60Hz 10A AC universal input
Wired Networking Interface
100BaseTX, Ethernet RJ45
Wireless Networking Interface
Compatible with WiFi 6. Connect to Wi-Fi with any 802.11a/b/g/n/ac/ax 2.4 GHz/5 GHz
broadcast-capable router.
Learn more
Analogue Audio Input
2 x RCA inputs -10dB (stereo into one zone)
USB-C Analogue Audio Input
44.1 kHz / 16 bit (stereo into any zone) Requires Sonos Line-In Adapter
Subwoofer Connections
1 x RCA output -10dB (configurable to output from one zone), and 1x Sonos Sub per zone
Direct Streaming Formats
Apple AirPlay 2, Spotify Direct Control, and more.
Learn more
CPU
Quad Core
4xA55 1.9GHz
Sonos Amp Multi
Power Cable
Length: 6 ft (2 m)
Sonos Banana Plugs
Set of eight (8)
Documentation
Quickstart Guide and legal/warranty information
Speakers
Passive speakers required for audio output
Internet Connection
Ethernet connection or WiFi
Ethernet needs Category 5 (CAT5) cable or higher
Power Source
Nearby electrical outlet
Sonos app
The latest generation of the Sonos app running on a compatible device
Learn more
What is the warranty length for Amp Multi?
Amp Multi comes with a 3-year warranty, giving you peace of mind and reliable coverage.
Is the 125 W per channel rating peak power or continuous?
Amp Multi delivers 125 watts of continuous (RMS) average power per channel into an 8-ohm load, with all channels driven.
What is the damping factor of Amp Multi?
The damping factor is approximately 437 when paired with an 8-ohm speaker.
What if I’m in a noisy environment and my device can’t hear the setup chirp?
If the chirp is not detected, you can enter the PIN printed on the back of the unit directly in the Sonos app.
How much clearance does Amp Multi need for airflow if it’s not rack-mounted?
We recommend allowing at least four inches (10 centimetres) of space on the top and sides for proper ventilation.
Does Amp Multi support Trueplay?
No, Amp Multi introduces ProTune—a manual tuning feature that lets you fine-tune the sound for any low-impedance passive speaker and room. When used with Sonos Architectural speakers, enabling Optimise Sonos Speakers applies custom tuning and DSP tailored to their unique acoustic design.
Why is Amp Multi 1.5U in height, and how does that fit in a rack?
Amp Multi shares the same 1.5U height as Sonos Amp, ensuring consistency when mixing device types. The Rack Mount (sold separately) adds an extra 0.25U of space above and below the unit—for a total height of 2U—for optimal airflow and easier access without wasting rack space.
Why doesn’t the Rack Mount include additional rack screws?
To avoid waste and stay aligned with our sustainability goals, we only provide the screws needed to secure Amp Multi to the Rack Mount.
How do I assign the subwoofer output to a specific zone?
In the Sonos app, go to Zone Settings, select Connect Sub, and follow the instructions to assign the subwoofer output to the desired zone.
How many subwoofers can Amp Multi support?
Amp Multi supports Sonos Sub 4, Sub (Gen 3), and Sub Mini. You can assign one Sonos Sub per zone, up to four total. The subwoofer output port supports a powered third-party sub, which can be freely assigned to any zone in the app.
Why doesn’t Amp Multi include HDMI like Sonos Amp?
Amp Multi is purpose-built for bespoke, distributed audio applications. If you need HDMI connectivity for TV or home theatre setups, Sonos Amp or a Sonos soundbar is the best fit, with both offering the ability to work seamlessly alongside Amp Multi in the same system.
Why does Sonos Amp have two Ethernet ports, while Amp Multi only has one?
Sonos Amp includes two ports for daisy-chaining multiple units, supporting up to four zones. Amp Multi’s design eliminates the need for extra ports while simplifying installation.
How do the audio stream inputs work, and how many AirPlay 2 connections are supported?
Each zone can utilise a separate source or stream. If Amp Multi is set up for four zones, each one can support its own AirPlay 2 stream, Spotify Connect session, or playback from the Sonos app.
Is Bluetooth® supported?
No, Amp Multi does not include Bluetooth connectivity.
